2U Rackmount Accessory Matrix

Webpage updated on March 25, 2024

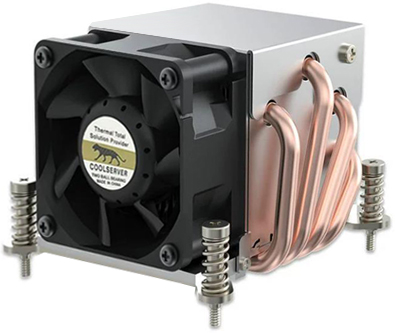

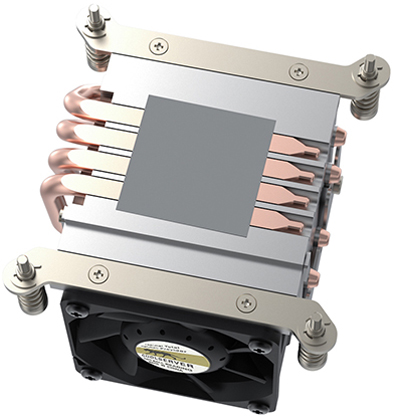

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square
* Heatsink with fan size: 90Lx90Wx67H(mm), power consumption at 150W
* Fan size & specification: 60L x 60W x 25T(mm), 6800rpm, 52dBA, CFM 34.50, DC12V @ 0.42A
* Heatsink material: AL6063+AL5052+Copper heat pipe x4
* Fastener: M4 screws + springs + 8080 Square brackets
* Support LGA2011 CPU version as 80mm x 80mm
* 2U 3U 4U server chassis compatible
* Package: NW 337g, GW 390g, 0.037 CUFT (108x108x90mm, box packed)

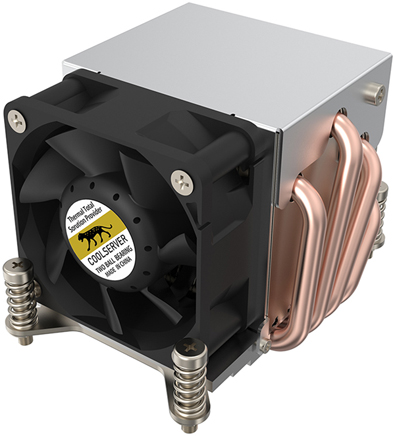

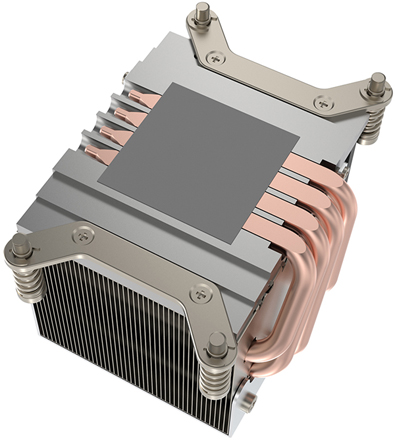

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow
* Heatsink with fan size: 104Lx79.5Wx67H(mm), power consumption at 150W
* Fan size & specification: 60L x 60W x 25T(mm), 6800rpm, 52dBA, CFM 34.50, DC12V @ 0.42A
* Heatsink material: AL6063+AL5052+Copper heat pipe x4
* Fastener: M4 screws + springs + 5694 Narrow brackets
* Support LGA2011 CPU version as 56mm x 94mm
* 2U 3U 4U server chassis compatible
* Package: NW 344g, GW 397g, 0.037 CUFT (108x108x90mm, box packed)

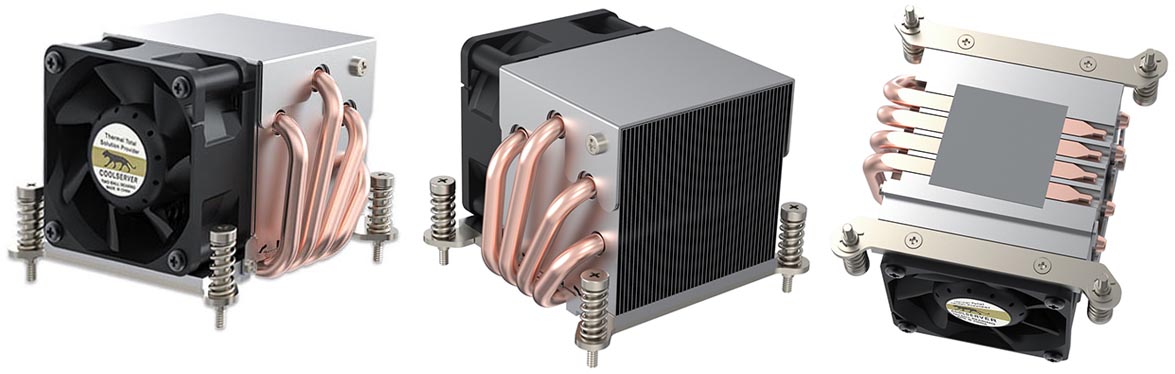

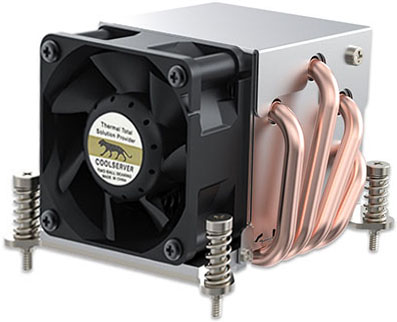

2U115XA

2U Intel LGA115x Xoen 1230 active CPU cooler
* Heatsink with fan size: 90Lx90Wx67H(mm), power consumption at 165W
* Fan size & specification: 60L x 60W x 25T(mm), 6800rpm, 52dBA, CFM 34.50, DC12V @ 0.5A
* Heatsink material: Aluminum 1100/5052/6063, copper CU1020 core and copper heat pipe x4
* Fastener: M3 screws + springs
* Support Intel LGA1150 LGA1151 LGA1155 LGA1156 LGA1200 (Socket H5) Xeon1230
* 2U 3U 4U server chassis compatible
* Package: NW 366g, GW 420g, 0.04 CUFT (108x108x90mm, box packed)

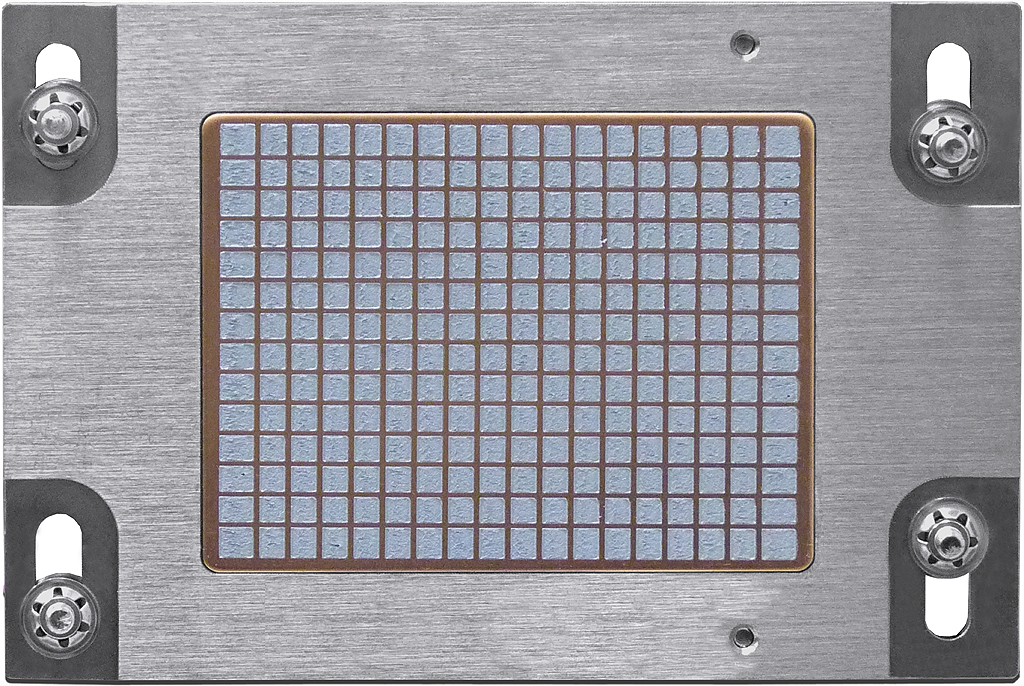

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3
* Heatsink with fan size: 120Lx80Wx64H(mm)
* Fan size & specification: 60L x 60W x 25T(mm), 6000rpm / 50dBA, CFM 33.52, DC12V @ 0.55A
* Heatsink material: Aluminum base AL6063 & Fin AL1100, copper CU1100 core and copper heat pipe x4
* Fastener: M3 screws + springs
* Support AMD EPYC LGA4094 socket SP3, socket (s)TR4 (SP3r2), and socket sTRX4 (SP3r3)
* 2U 3U 4U server chassis compatible
* Package: NW 430g, GW 490g, 0.04 CUFT (140x100x85mm, box packed)

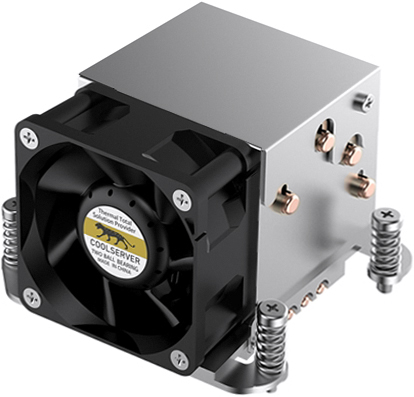

2U1718A-AM5

2U AMD AM4 AM5 active CPU cooler
* Heatsink with fan size: 99Lx85.2Wx67H(mm)
* Fan size & specification: 60L x 60W x 25T(mm), 6800rpm / 52dBA, CFM 34.5, DC12V
* Heatsink material: Aluminum fins + four copper heat pipes
* Fastener: M3 screws + springs
* Support AMD LGA1331 socket AM4, and LGA1718 socket AM5, TDP 200W
* 2U 3U 4U server chassis compatible
* Package: NW 450g, GW 500g, 0.04 CUFT (140x100x85mm, box packed)

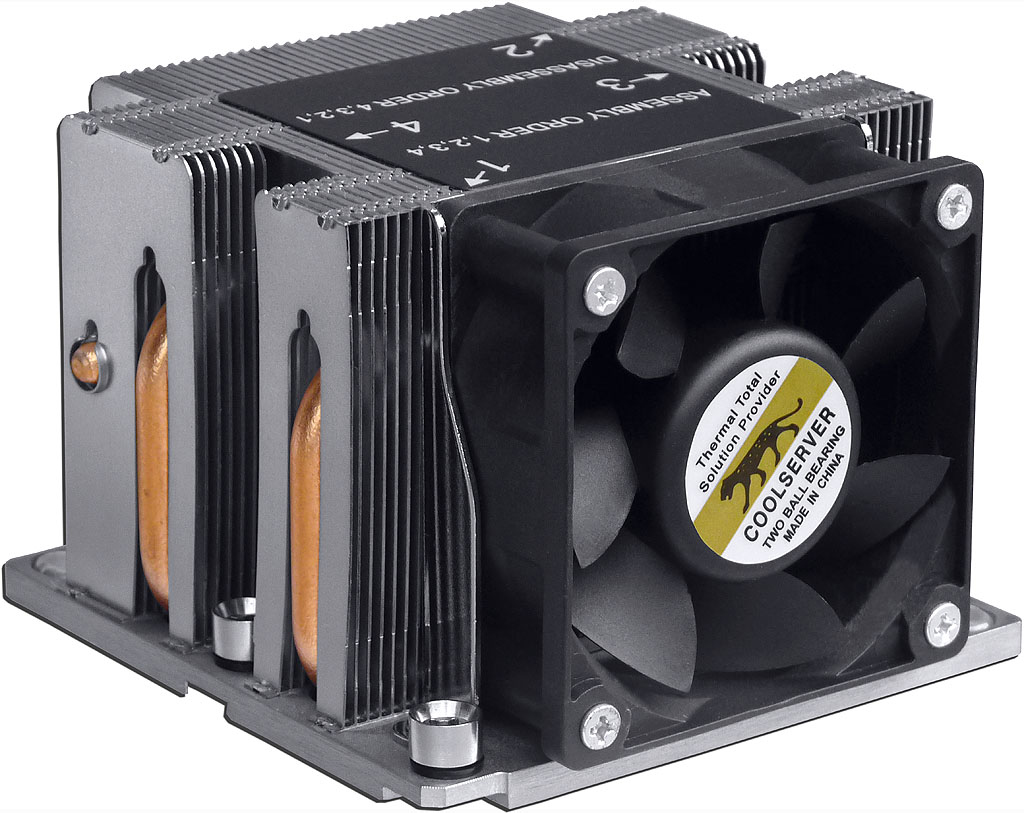

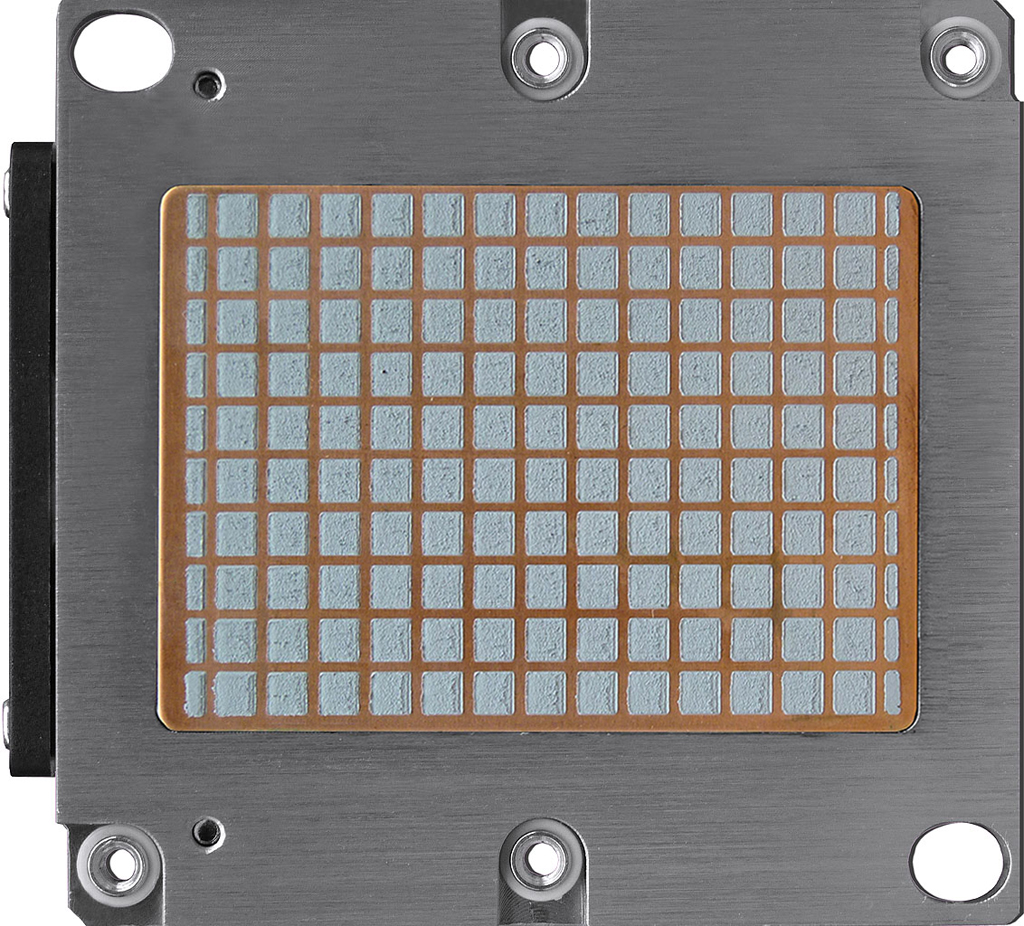

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square
* Heatsink with fan size: 91Lx88Wx64.5H(mm), power dispassion at 205W
* Fan specification: 60L x 60W x 25T(mm), 6025BVH-M1, 6800rpm, 43dBA, CFM 36.08, DC12V @ 0.38A
* Heatsink material: Aluminum 1050 and copper CU1100 and copper heat pipe x4
* Fastener: M4 screws
* 2U 3U 4U server chassis compatible
* Package: NW 0.42 KGM, GW 0.47 KGM, 0.04 CUFT (120x110x90mm, one box packed)

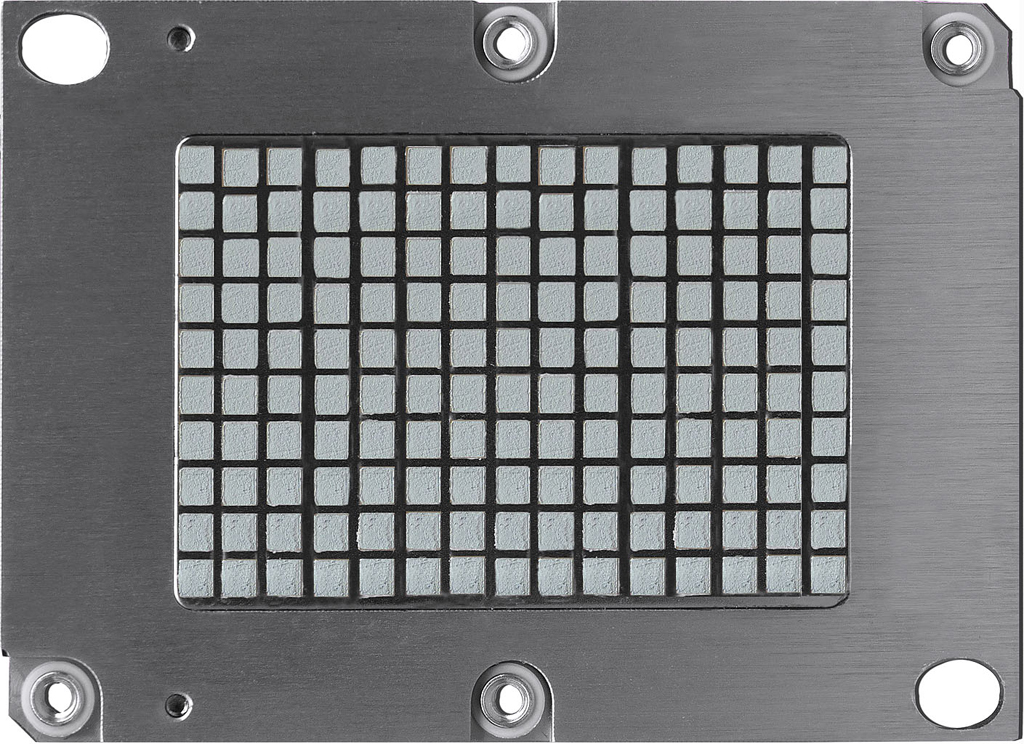

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow
* Heatsink with fan size: 108Lx78Wx64.5H(mm), power dispassion at 165W
* Fan specification: 60L x 60W x 25T(mm), 6025BVH-M1, 6800rpm, 43dBA, CFM 36.08, DC12V @ 0.38A
* Heatsink material: Aluminum 1050 and aluminum heat pipe x3
* Fastener: M4 screws
* 2U 3U 4U server chassis compatible
* Package: NW 0.41 KGM, GW 0.46 KGM, 0.04 CUFT (130x100x90mm, one box packed)

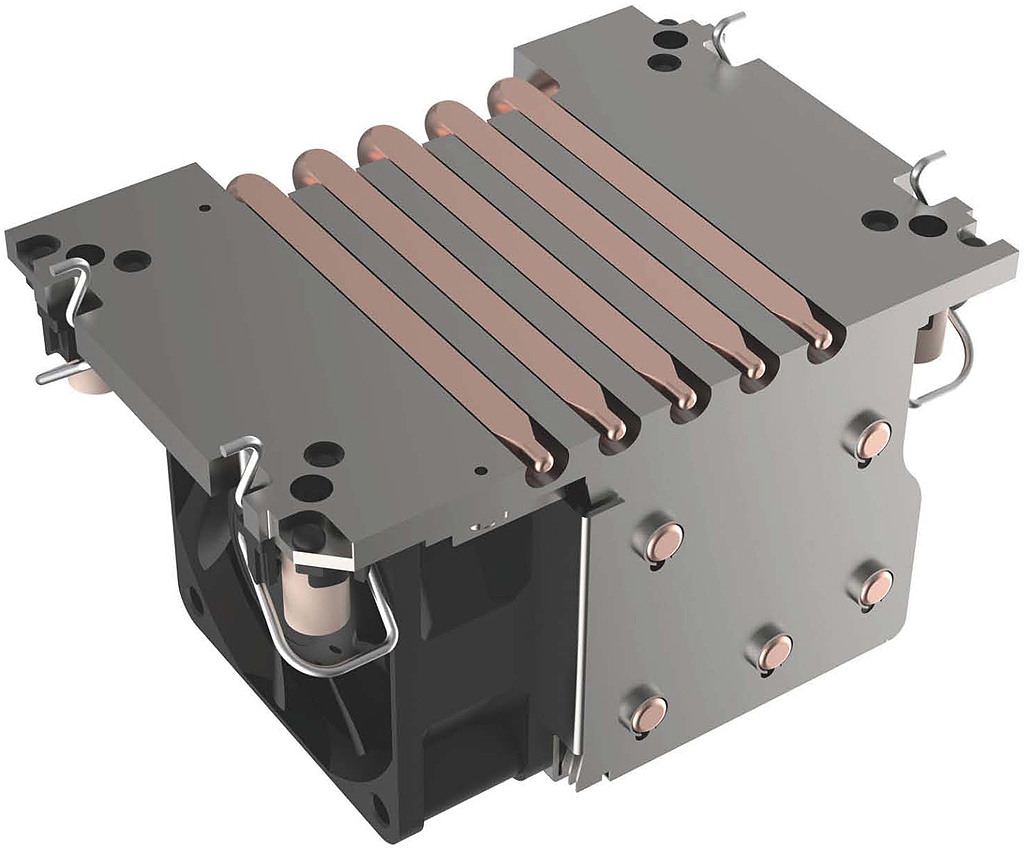

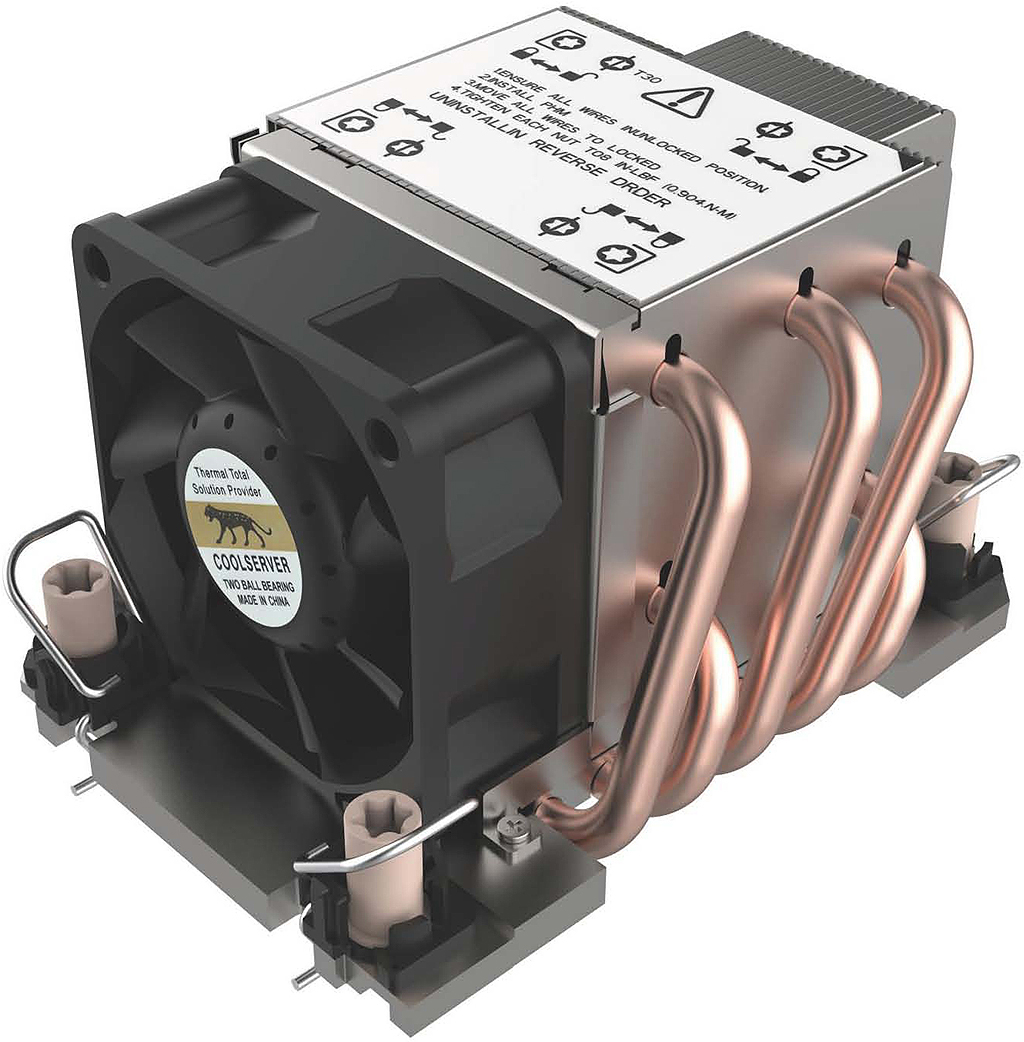

2U4189A-M82

2U Intel LGA4189 active CPU cooler
* Heatsink with fan size: 113Lx78Wx66H(mm), power dispassion at 240W
* Fan specification: 60L x 60W x 25T(mm), 8000rpm, 54.34dBA, CFM 34.74, DC12V @ 0.82A
* Heatsink material: Aluminum 1050 and copper heat pipe x5

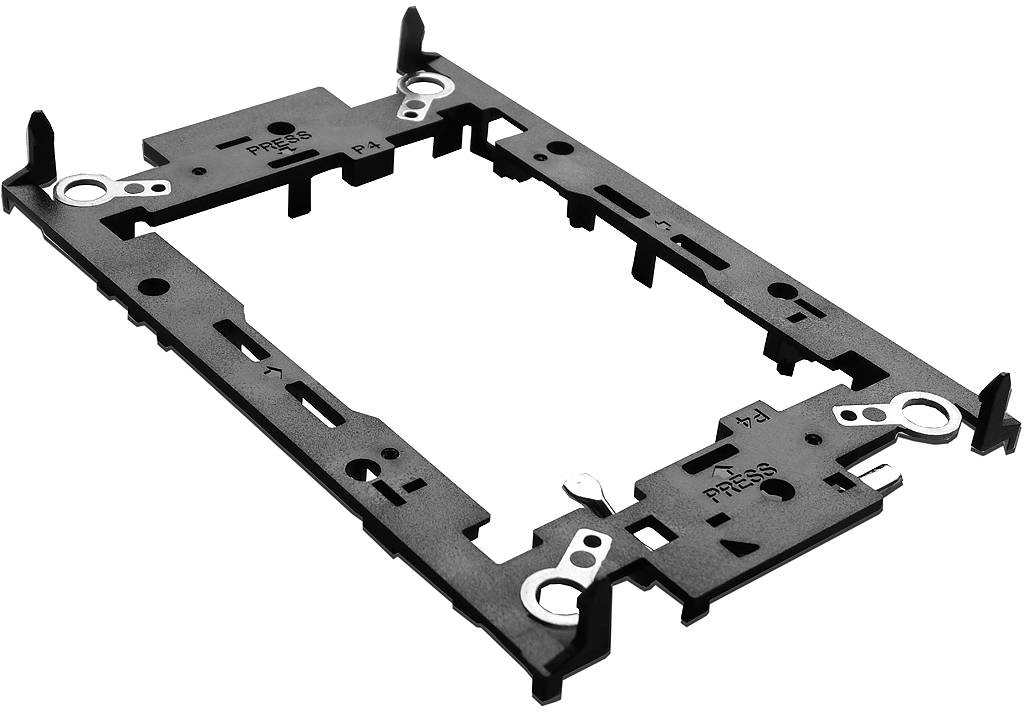

* Option: M82-V3-HOLDER (Xeon 4310, the 3rd generation of Scalable CPU compatible)

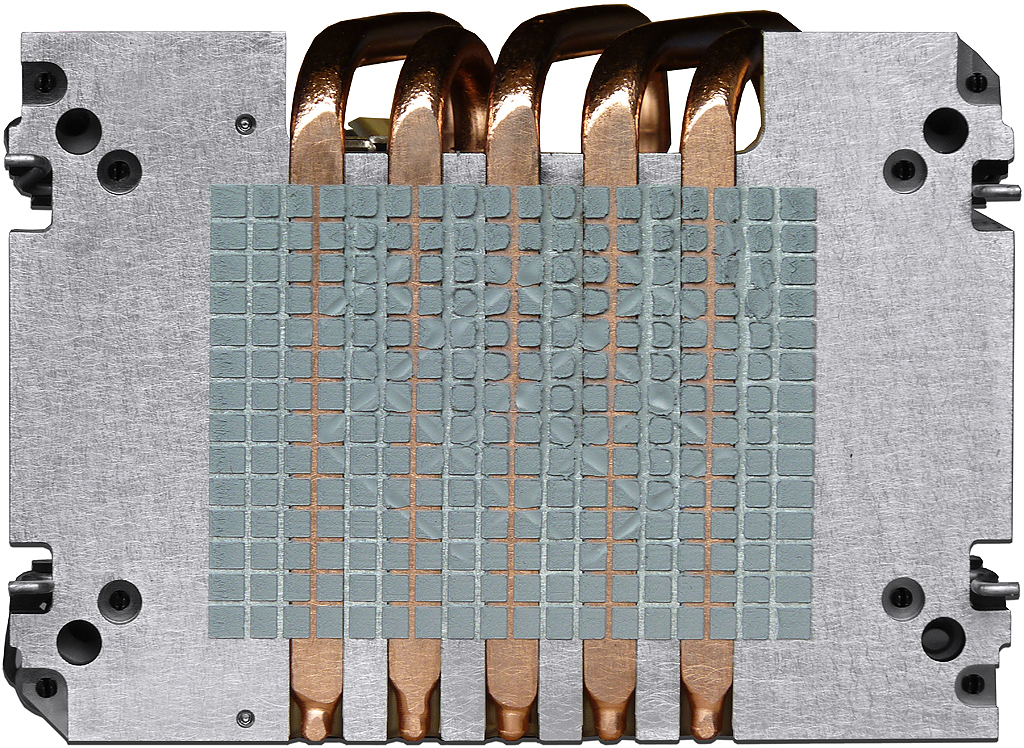

* 2U 3U 4U server chassis compatible, side view, back view
* Package: NW 0.41 KGM, GW 0.46 KGM, 0.04 CUFT (130x100x90mm, one box packed)

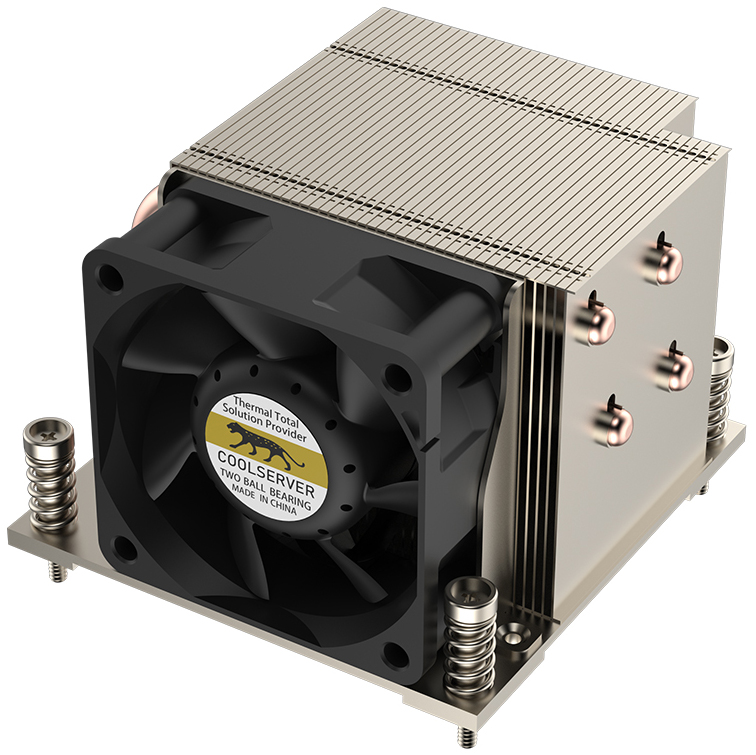

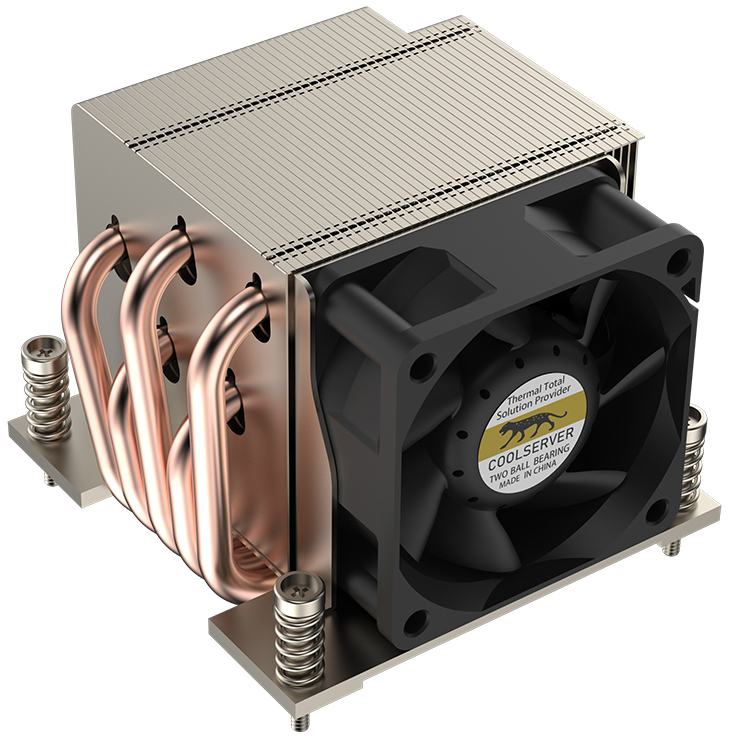

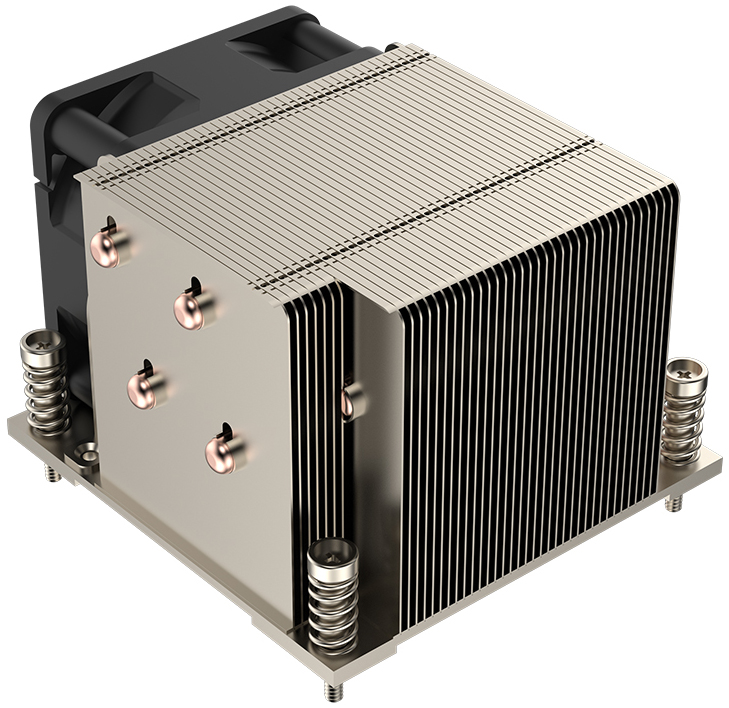

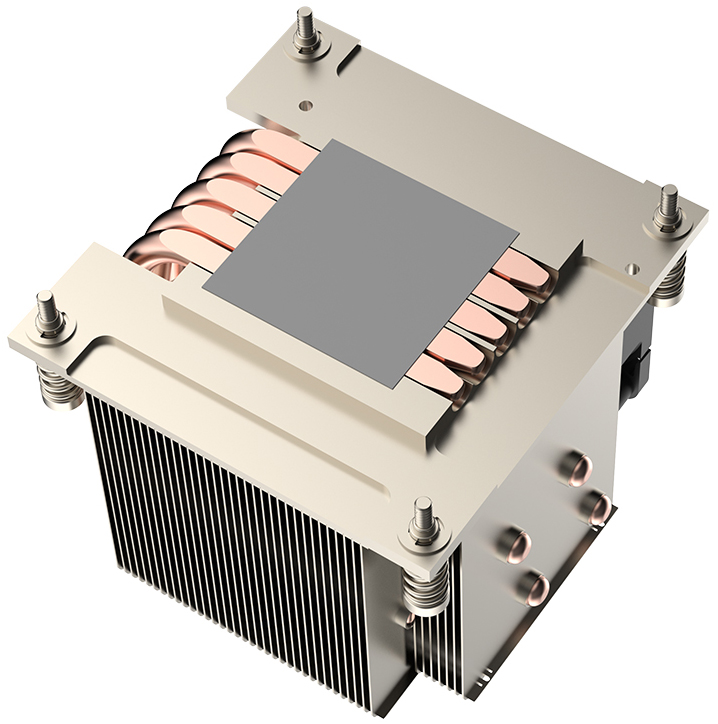

2U1700A-V15

2U Intel LGA1700 active CPU cooler
* Heatsink with fan size: 91Lx90Wx65.5H(mm), power consumption at 200W
* Fan specification: 60L x 60W x 25T(mm), 2600~8000rpm, 52.50dBA max., CFM 47.20 max., DC12V @ 0.5A
* Heatsink material: Aluminum 1100 and copper heat pipe x2
* 2U 3U 4U server chassis compatible, side view
* Support LGA1700 mounting holes at 78mm x 78mm
* Package: NW 0.43 KGM, GW 0.48 KGM, 0.04 CUFT (105x105x90mm, one box packed)

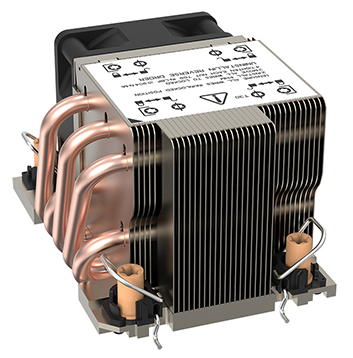

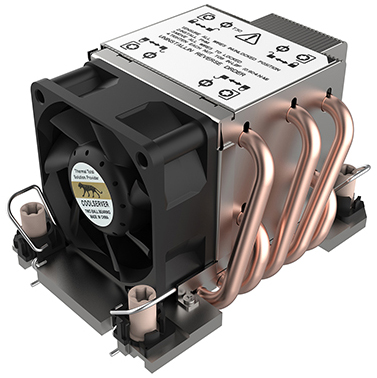

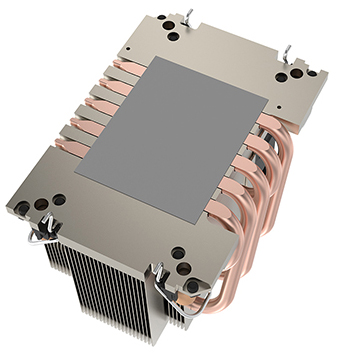

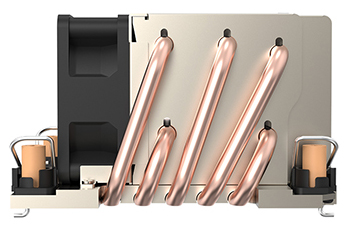

2U4677A-M82

2U Intel LGA4677 Xeon active CPU cooler
* CPU type: LGA4677 (rectangular motherboard)
* Product size: 118mm x 78mm x 66mm
* Fan spec: PWM 2100-8000RPM, double ball bearing
* Noise value: 54.34dBA (max)
* Air volume: 34.74CFM (max)
* Fan plug: DC 12V, 4pin PWM

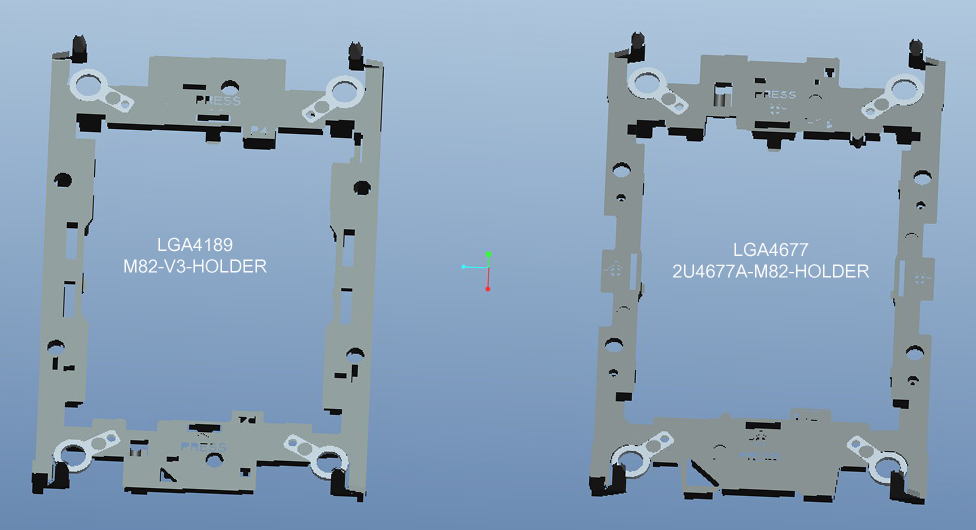

* Option: 2U4677A-M82-HOLDER
* Power consumption: 300W
* Material quality: copper base + aluminum fins + 5 heat pipes
* Package: NW 0.41 KGM, GW 0.46 KGM, 0.04 CUFT (130x100x90mm, one box packed)
