4U Rackmount Accessory Matrix

Latest webpage updated on December 22, 2020

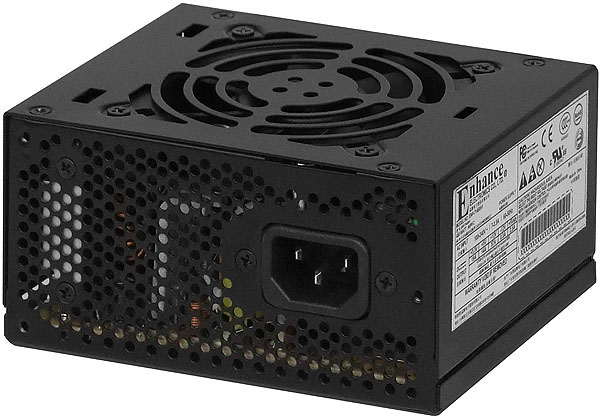

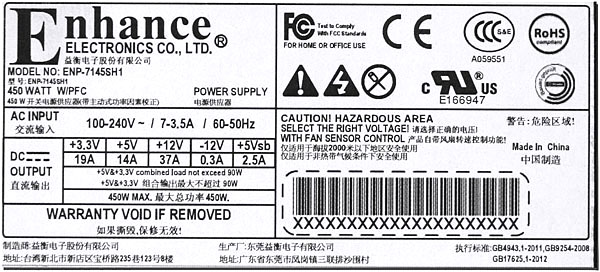

ENP-7145SH

SFX 450W power supply with PFC
* AC input voltage: 100V~240V (also 90V~264V worldwide compatible), Frequency: 50~60Hz
* DC output voltage: +3.3V @ 19A, +5V @ 14A, +12V @ 37A, -12V @ 0.3A, +5Vsb @ 2.5A
* PSU size & spec: D.100 x W.125 x H.63.5 /mm
* 80Plus Gold, 115VAC or 230VAC at 90% maximum
* All cable wiring harness mode (Taiwan Enhance 3-year warranty & wiring harness qualified by IPC China)
* Safety: CE, FCC, UL, Nemko, CB, CCC

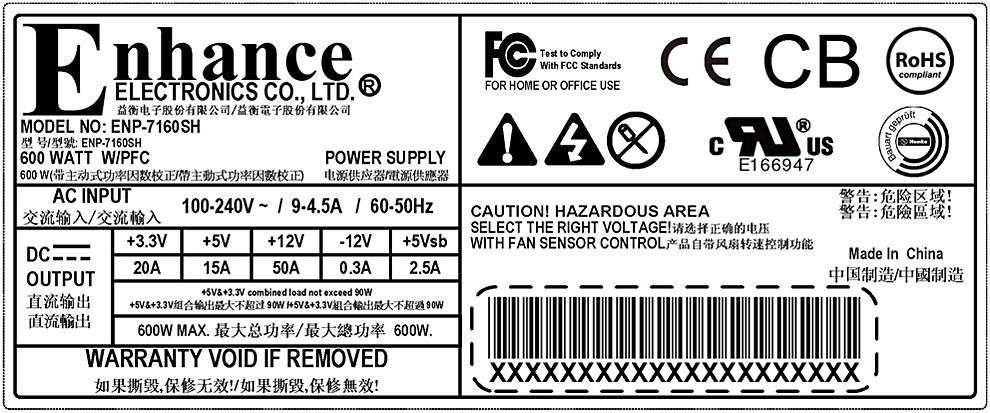

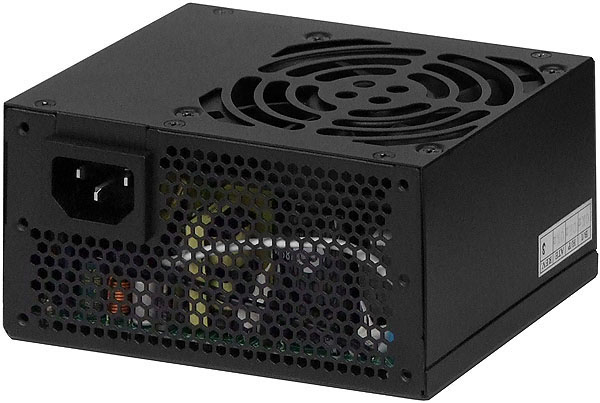

ENP-7160SH

SFX 600W power supply with PFC
* AC input voltage: 100V~240V (also 90V~264V worldwide compatible), Frequency: 50~60Hz
* DC output voltage: +3.3V @ 20A, +5V @ 15A, +12V @ 50A, -12V @ 0.3A, +5Vsb @ 2.5A
* PSU size & spec: D.100 x W.125 x H.63.5 /mm
* 80Plus Gold, 115VAC or 230VAC at 90% maximum
* Fully modular cable wiring harness mode (Taiwan Enhance 3-year warranty & wiring harness qualified by IPC China)
* Safety: CE, FCC, UL, Nemko, CB, CCC

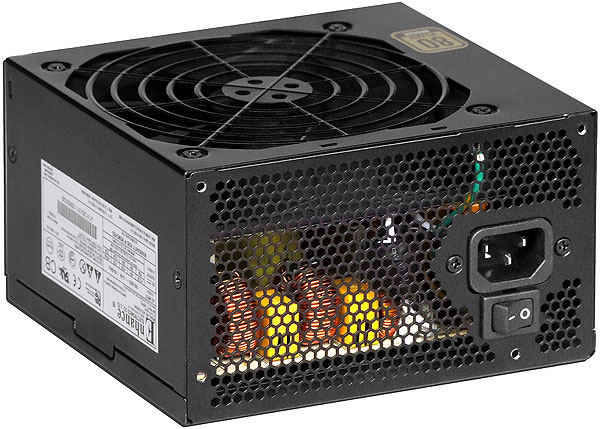

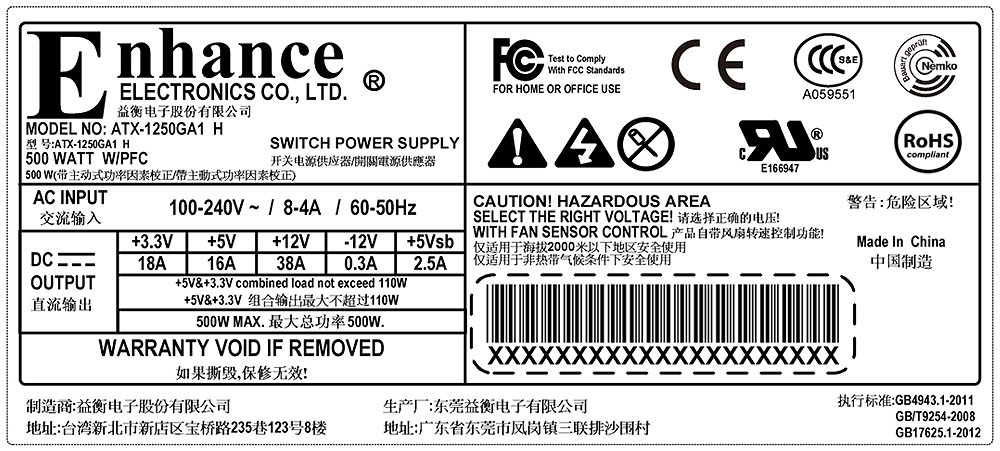

ATX-1250GAH

PS2 500W power supply with PFC
* AC input voltage: 100V~240V (also 90V~264V worldwide compatible), Frequency: 50~60Hz
* DC output voltage: +3.3V @ 18A, +5V @ 16A, +12V @ 38A, -12V @ 0.3A, +5Vsb @ 2.5A
* PSU size & spec: D.140 x W.150 x H.86 /mm (3U & 4U chassis recommended, 2U chassis not suggested)
* 80Plus Bronze, 115VAC or 230VAC at 82% maximum
* Power supply wiring harness (Taiwan Enhance 3-year warranty & wiring harness qualified by IPC China)
* Safety: CE, FCC, UL, Nemko, CB, BSMI, CCC

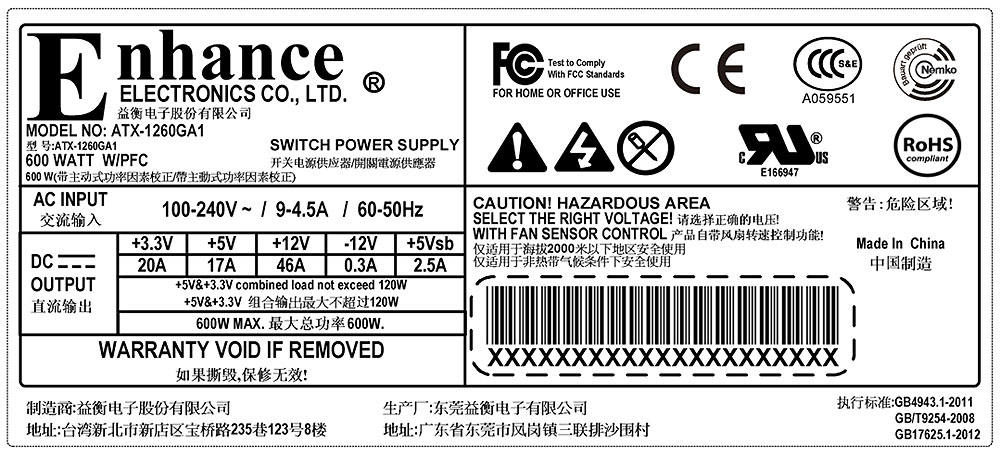

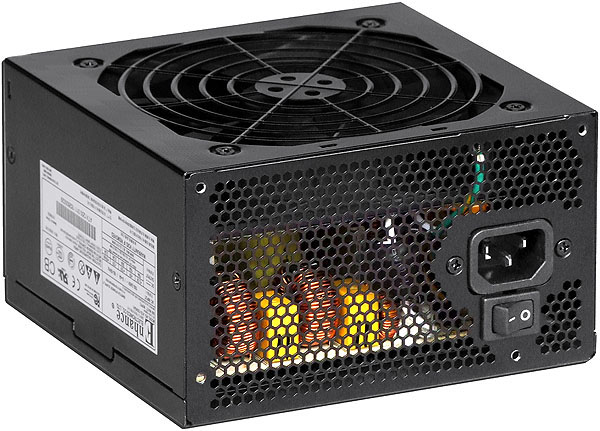

ATX-1260GA1

PS2 600W power supply with PFC
* AC input voltage: 100V~240V (also 90V~264V worldwide compatible), Frequency: 50~60Hz
* DC output voltage: +3.3V @ 20A, +5V @ 17A, +12V @ 46A, -12V @ 0.3A, +5Vsb @ 2.5A
* PSU size & spec: D.140 x W.150 x H.86 /mm (3U & 4U chassis recommended, 2U chassis not suggested)
* 80Plus Bronze, 115VAC or 230VAC at 82% maximum
* Power supply wiring harness (Taiwan Enhance 3-year warranty & wiring harness qualified by IPC China)
* Safety: CE, FCC, UL, Nemko, CB, BSMI, CCC
