R4450

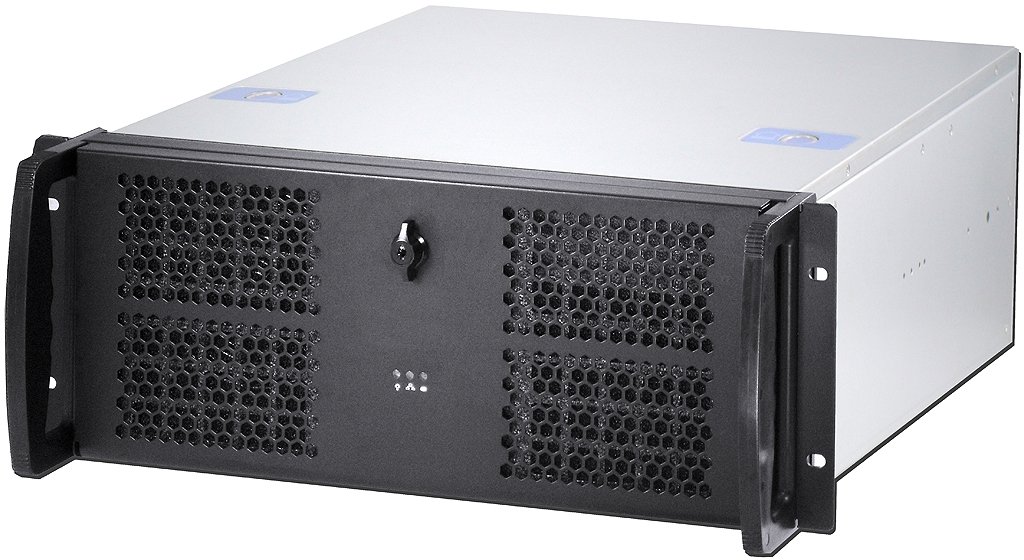

4U black eATX server chassis

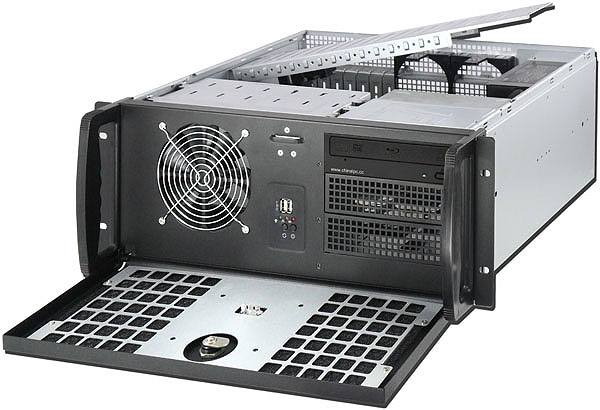

01) Industrial strong grade butterfly security door
02) Removable dustproof filter at front
03) Screwless top cover (also screwable)

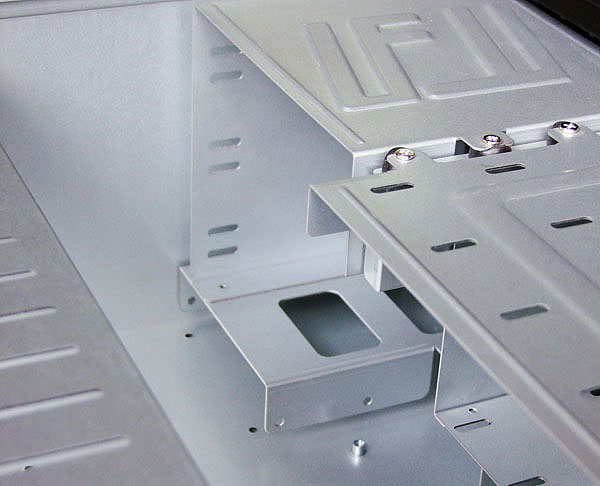

04) Drive bay with anti vibration function

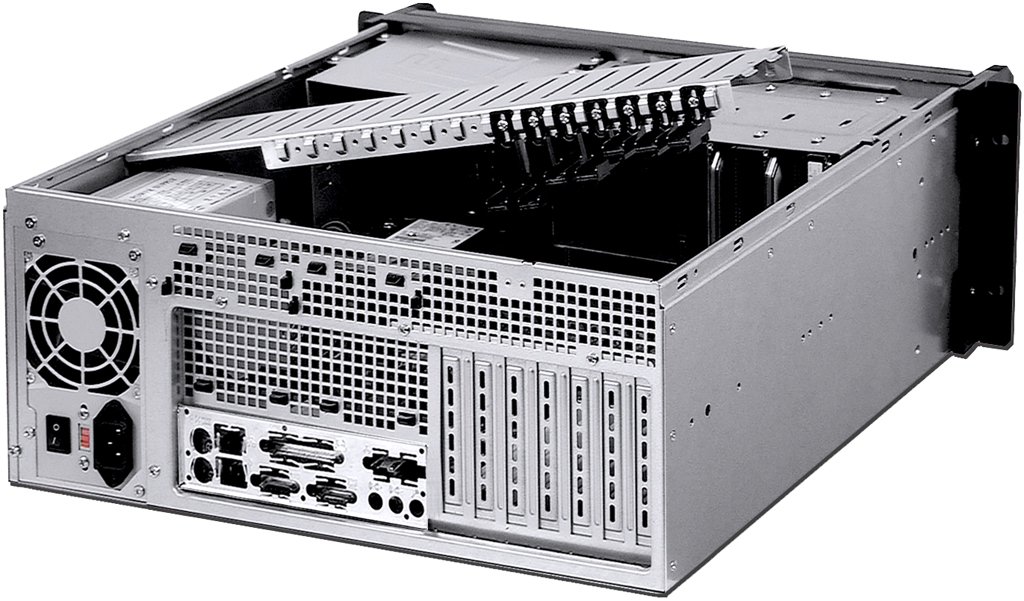

05) Rear panel with two ABS easy-install fan brackets

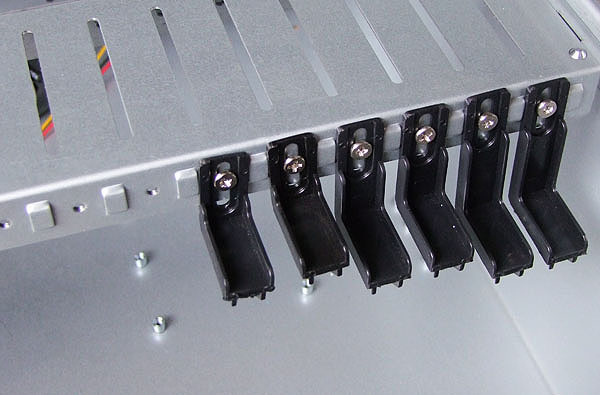

06) Build in hold-down-card clamp with 6 holders
07) Compatible with 12"x13" eATX or smaller form factor
08) Compatible with PS2 or PS2 Mini-Redundant PSU

09) Main metal guaranteed by durable 1.0mm~1.2mm

10) Build in brand new Sunon 120mmx25mm 2ball fan

11) bare noise @ 28dBA (fan noise against room noise)

12) IPC China branded product global warranty 3 years

* Total 10 bay: 3 x 5.25" ODD & 7 x 3.5" HDD bay (7 HDD if 12"x9.6" ATX MB installed)
* All bays equipped with damping function to reduce vibration & extend storage life

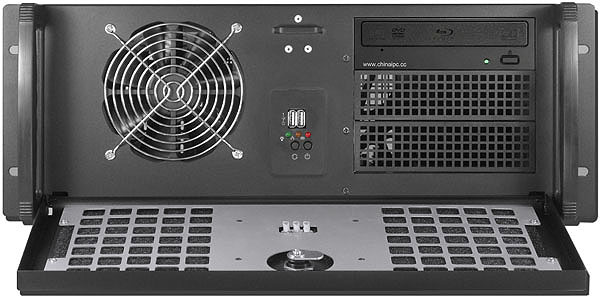

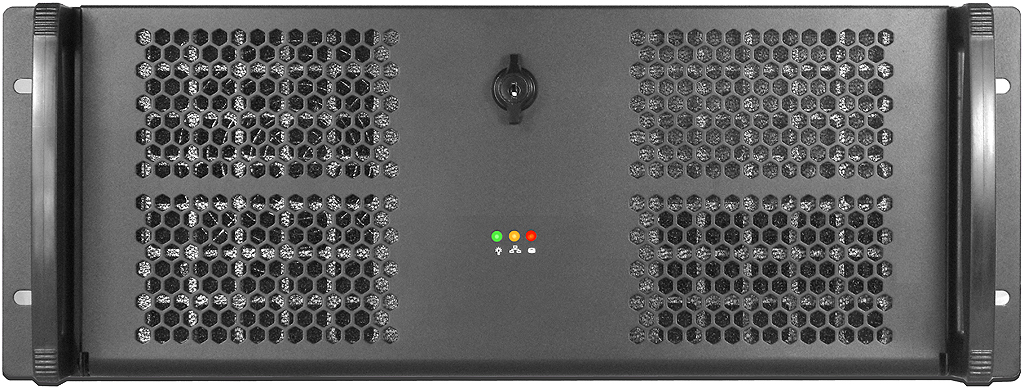

* Equipped with front door by a security lock & with removable dust air filter function
* Screwless hand-free top cover design (screws can also be used & fixed)
* Standard with two USB 2.0 ports at front bezel (behind the front security door, two USB 3.0 as option)
* One Sunon EEC0251B1-000C-G99 120mmx25mm intake fan with dustproof filter at front

* Room noise w/o fan activated is 46dBA, tested by 10cm distance to running fan is 74dBA (including room noise)
* Equipped with 6 short-medium-long holders upward & downward allowed

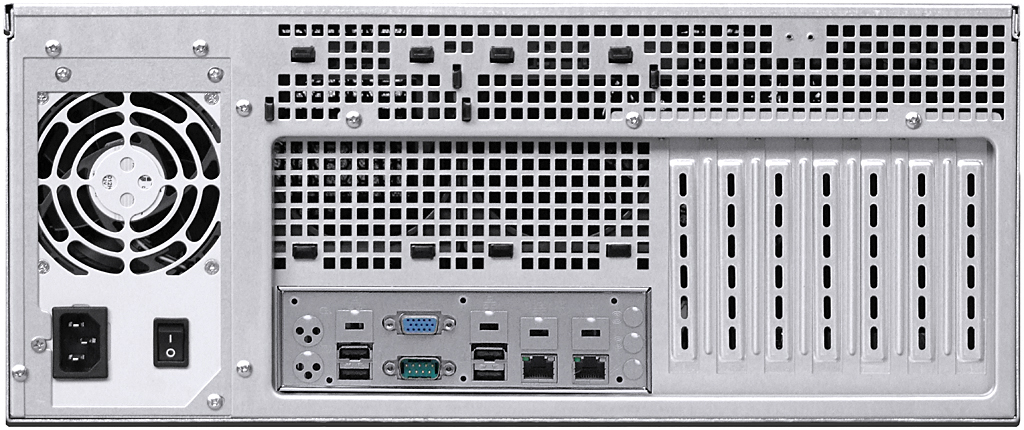

* Build-in two ABS screwless 80mmx25mm fan brackets at rear panel (fans are option)

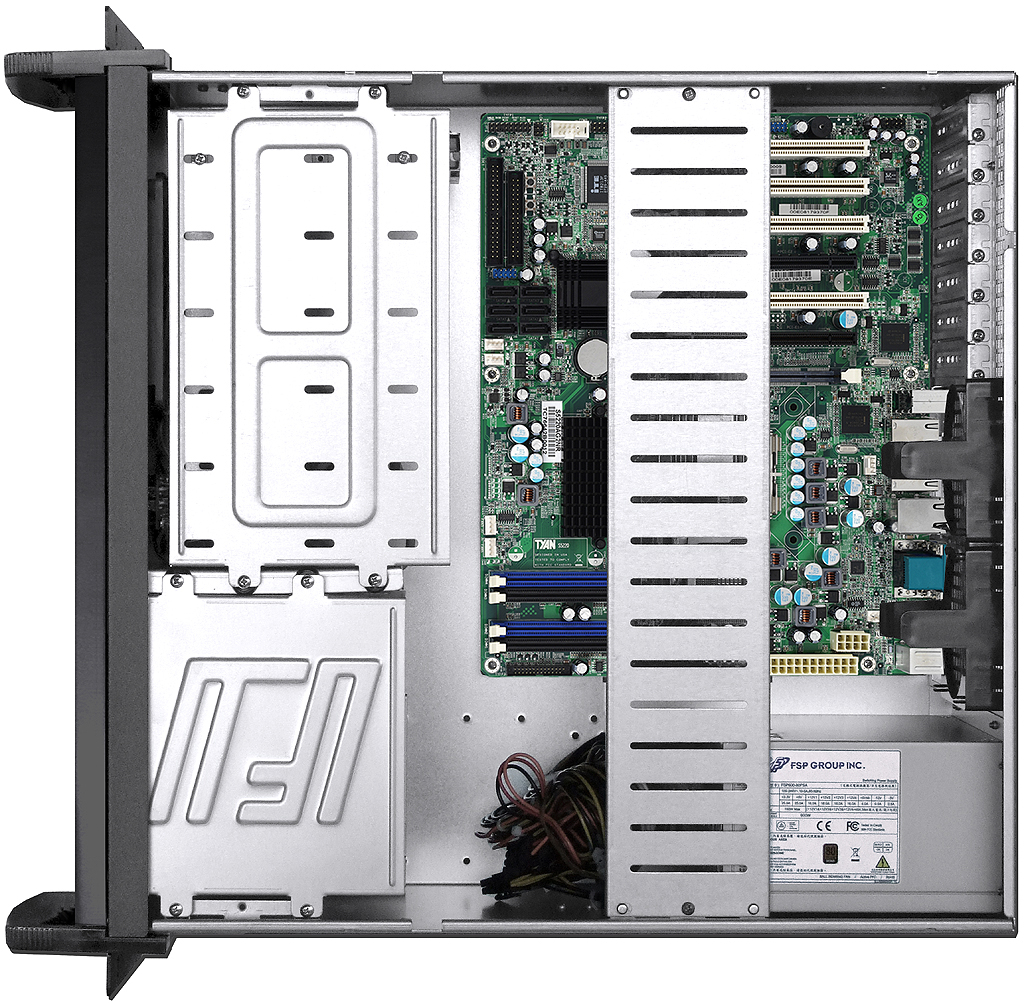

* MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~260mm)

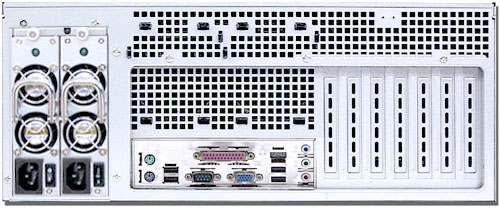

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)
* Support 7 full height expansion cards (max. 240mm deep if HDD installed at front)
* Support 7 full height expansion cards (max. 320mm deep if no HDD installed at front)
* Standard paint: scratch-resistant Black textured at front
* IPC China branded product including build in fan(s) global warranty 3 years
* Chassis dimension: 19" x 4U x 450mm (17.71" deep)

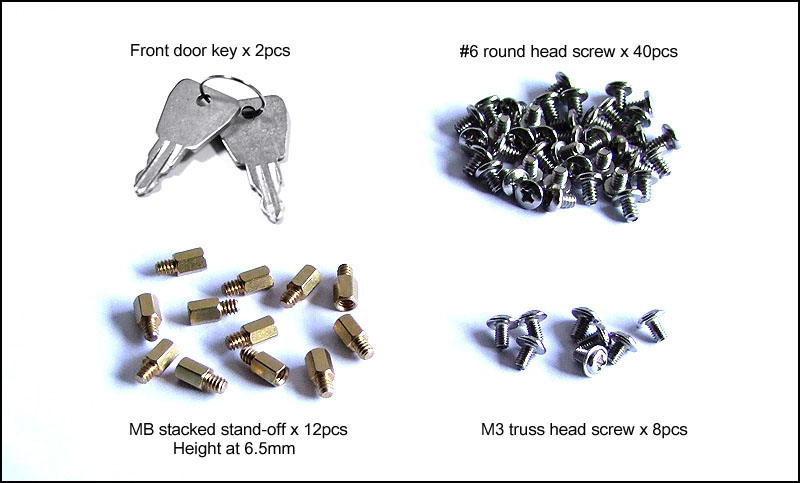

* Accessory pack: MB stand-off x12, #6 round screw x40, , M3 truss screw x8, key x2
* Package: NW 10KGM, GW 12 KGM, 3.14 CUFT (61x56x26cm, durable box packed)

* Drawing      English catalogue

Ordering information:
Chassis model # & description: R4450 4U black eATX server chassis

Option A-1: 8cm & 12cm & 14cm fan version PS2 power supply (maximum depth at 260mm)

Option A-2: SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)
Option A-3: Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)
Option A-4: SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)
Option A-5: Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)
Option B-1: NJ-600, 1234U 65kg durable 600mm 2-layer 3-travel universal slide rail (part# is 1 pair)

Option B-2: 1234U-RMK, 1234U rear mounting kit (part# is 1 pair)

Option C: SUNON8025, exhaust 80mm x 25mm fan installed at ABS fan bracket at rear panel (part# is 1pcs, can install 2pcs at rear panel)

Option D: 25-35-BK, 5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

Option E-1: 2525TO3HDBK, two 5.25" drive space converted into three 3.5" HDD bracket

Option E-2: 3525TO5HDBK, three 5.25" drive space converted into five 3.5" HDD bracket

Option E-3: N-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-4: S-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-5: N-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-6: S-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-7: N-29SS15, 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-8: N-67SS, 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-9: SS-88TM, 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-10: N-49SS-MS, 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-11: N-49SS, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-12: SS-46TM, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-13: SS-86TM, 2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-14: N-36TM, 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-15: S-36TM, 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-16: N-36TL, 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-17: S-36TL, 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-18: SS-126TM, 3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option E-19: N-46TM-MS, 3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option E-20: N-46TM, 3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option E-21: S-46TM, 3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option E-22: N-46TL-MS, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option E-23: N-46TL, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-24: S-46TL, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-25: N-56TM, 3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option E-26: S-56TM, 3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option E-27: N-56TL, 3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-28: S-56TL, 3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1: 1MSAS-4SATA-500MM, SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2: SFF-8643-500MM, SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3: 4SATA-SFF-8643-500MM, Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4: SFF-8643-4SATA-500MM, SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1: 2U2011A-8080, 2U Intel LGA2011 active CPU cooler Square

Option G-2: 2U2011A-5694, 2U Intel LGA2011 active CPU cooler Narrow

Option G-3: 2U1150A, 2U Intel LGA115x active CPU cooler

Option G-4: 2U4094A, 2U AMD EPYC SP3 LGA4094 active CPU cooler

Option G-5: 2U3647A-S82, 2U Intel LGA3647 active CPU cooler Square

Option G-6: 2U3647A-R82-1, 2U Intel LGA3647 active CPU cooler Narrow
