G2430

2U EnergySaving server chassis

01) Build in Intelligent EnergySaving function
02) Efficiently fan life time extendable

03) Four 2.5" SSD/HDD & four 5.25" ODD as storage

04) Various 2.5" or 3.5" hotswap HDD as options

05) Two USB 2.0 ports at front (two USB 3.0 as option)

06) One 80mmx25mm exhaust silent fan as standard

07) Build in removable front key-lock door with air filter

08) Mini-ITX board compatible, chassis depth 430mm

09) Main construction sheet metal by 1.2mm~2.0mm

10) High grade Korean SECC (not cheap SGCC)

11) Durable installation both at front & rear PSU

12) Normal PS2 & most Taiwan RPS makers approved

13) IPC China branded model global 3 years warranty

* Drive Capacity: four 5.25" ODD (max. 205mm deep available) and four 2.5" SSD/HDD allowed

* Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C
* Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)
* Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)
* Build in high grade heavy duty aluminum extrusion handles

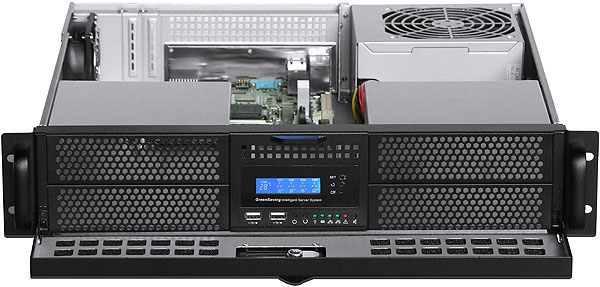

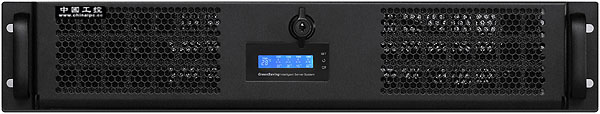

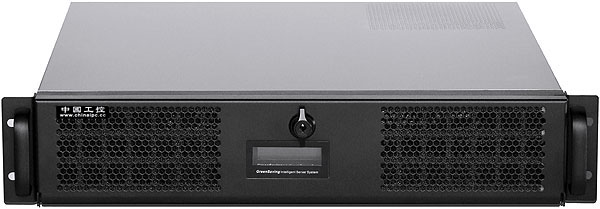

* Equipped removable butterfly keylock front door with changeable air dust filter (2 x USB 2.0 ports behind the door)
* Mechanism made by high & clean grade Korean SECC sheet metal by 1.2mm~2.0mm thickness
* One 80mm x 25mm low noise exhaust cooling fan at left side of chassis (fan part# D80SM-12)
* Support standard 6.7"x6.7" (170mm x 170mm) Mini-ITX motherboard

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible

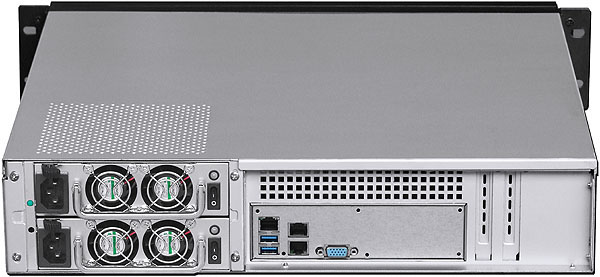

* Support 400W~500W SureStar R4S series 174mm deep PS2 Mini-Redundant power supply installation

* Support 300W~600W Zippy MRT & MRW 185mm deep PS2 Mini-Redundant power supply installation
* Support 600W~800W SureStar R4B series 199mm deep PS2 Mini-Redundant power supply installation
* Support 500W~800W Zippy MRG series 200mm deep PS2 Mini-Redundant power supply installation

* Support 2 slot low profile height expansion cards (maximum 200mm deep cards if 5.25" ODD depth at 205mm)
* Standard paint: scratch-resistant Black textured at front, and protective insulation sheet on surface of body
* IPC China branded server chassis model (with build-in fan) global 3 years warranty
* Chassis dimension: 19" x 2U x 430mm (16.93" deep)
* Accessory pack: #6 round head screw x10, #6 countersunk head screw x2, M3 truss head screw x32, key x2
* Package: NW 6.00 KGM, GW 8.00 KGM, 1.88 CUFT (carton size: 56cm x 56cm x 17cm, single box packed)
* Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English Catalogue      Chassis Quick Assembly Manual

Ordering Information:
Chassis model # & description: G2430 2U EnergySaving server chassis

Option A-1: (PS2 single PSU) PS2 psu with 120mm~140mm fan version (power supply

Option A-2: (PS2 Mini RPS) SureStar R4S series 400W/500W PS2 Mini Redundant power supply (depth at 174mm)

Option A-3: (PS2 Mini RPS) Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4: (PS2 Mini RPS) SureStar R4B series 600W/700W/800W PS2 Mini Redundant power supply (depth at 199mm)

Option A-5: (PS2 Mini RPS) Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1: (NJ-600) 1234U 65kg durable 600mm 2-layer 3-travel universal slide rail (part# is 1 pair, cabinet internal depth 600~1200mm compliant)

Option B-2: (1234U-RMK) 1234U rear mounting kit (part# is 1 pair)

Option C: (25-35-BK) 5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

Option D: (2525TO3HDBK) two 5.25" drive space converted into three 3.5" HDD bracket

Option E-1: (N-16TM) 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-2: (S-16TM) 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-3: (N-16TL) 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-4: (S-16TL) 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-5: (N-29SS15) 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-6: (N-67SS) 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-7: (SS-88TM) 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-8: (N-49SS-MS) 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-9: (N-49SS) 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-10: (SS-46TM) 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-11: (SS-86TM) 2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-12: (N-36TM) 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-13: (S-36TM) 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-14: (N-36TL) 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-15: (S-36TL) 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1: (1MSAS-4SATA-500MM) SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2: (SFF-8643-500MM) SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3: (4SATA-SFF-8643-500MM) Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4: (SFF-8643-4SATA-500MM) SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1: (2U2011A-8080) 2U Intel LGA2011 LGA2066 active CPU cooler Square

Option G-2: (2U2011A-5694) 2U Intel LGA2011 active CPU cooler Narrow

Option G-3: (2U1150A) 2U Intel LGA115x Xeon 1230 active CPU cooler

Option G-4: (2U4094A) 2U AMD EPYC SP3 LGA4094 active CPU cooler
Option G-5: (2U3647A-S82) 2U Intel LGA3647 active CPU cooler Square
Option G-6: (2U3647A-R82-1) 2U Intel LGA3647 active CPU cooler Narrow
