G4380

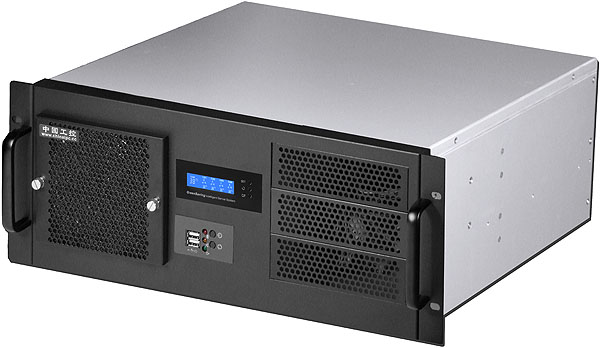

4U EnergySaving server chassis

01) build in Intelligent EnergySaving function
02) efficiently fan life time extendable

03) build in removable front cover with air filter

04) HDD drive bay with anti-vibration function
05) high grade aluminum rackmounting handles

06) support 12"x9.6" ATX or smaller MB

07) main construction sheet metal by 1.2mm~2.0mm

08) high clean grade Korean SECC (not cheap SGCC)

09) short depth may allow one front and one rear 4U

10) approved to use by Japan Military Defense Dept

11) normal PS2 & most Taiwan RPS makers approved

12) build in brand new 120mmx25mm low noise fan
13) IPC China branded model global 3 years warranty

Latest webpage updated on October 29, 2019

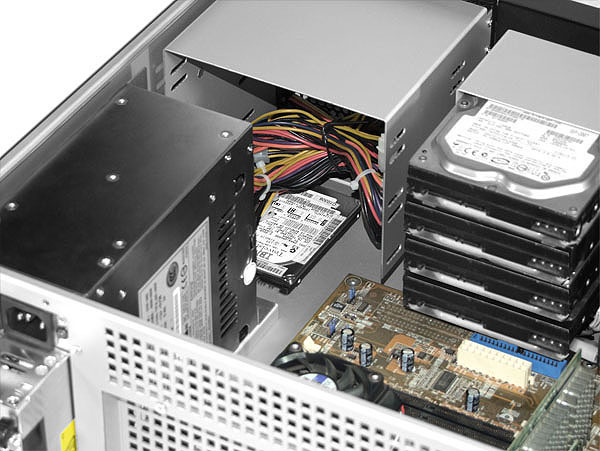

* Storage capacity: 3 x 5.25" ODD and 8 x 3.5" HDD and 1 x 2.5" HDD bay

* Intelligent EnergySaving device's default is all fans automatically activated if system temperature up to 38 degree-C
* Intelligent EnergySaving device's default is 38 degree-C but individual fan can be adjusted between 30~60 degree-C
* Intelligent EnergySaving device supported with four fan fail's indication and warming (stop warning by any button)
* Intelligent EnergySaving device supported with Celsius or Fahrenheit Degree (convertible by C/F button)
* HDD drive bay with anti-vibration function

* Build in high grade aluminum rackmounting handles

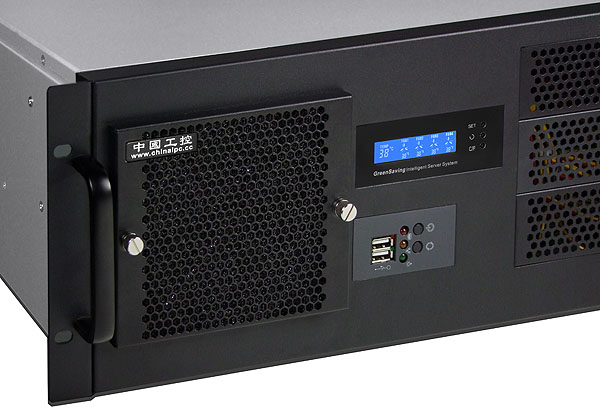

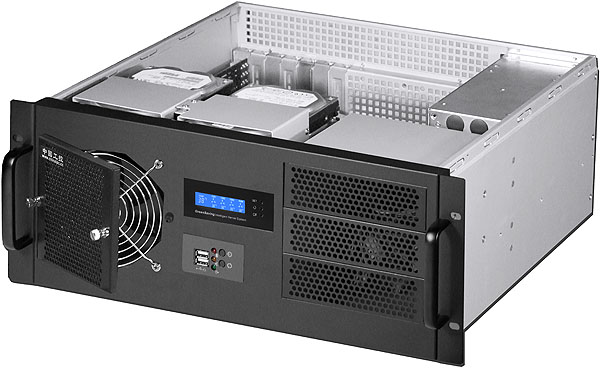

* Build in removable front cover with air filter

* Build with high & clean grade Korean SECC sheet metal by 1.2mm~2.0mm thickness
* Equipped two USB 2.0 ports
* One 120mm x 25mm low noise cooling fan at the front bezel of chassis (fan part# D12SM-12)

* Equipped with two ABS screwless easy assembly 80mmx25mm fan brackets at rear panel (fans are option)
* Support standard ATX(12"x9.6") & MicroATX(9.6"x9.6") & Mini-ITX(6.7"x6.7") MB

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (PSU depth at 140mm~200mm)

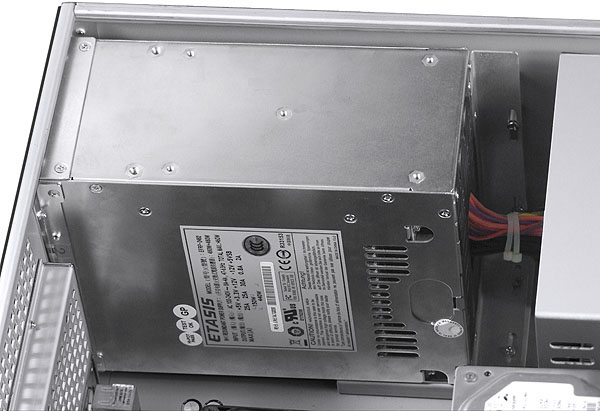

* Support 400W~500W SureStar R4S series 174mm deep PS2 Mini-Redundant power supply installation

* Support 300W~600W Zippy MRT & MRW 185mm deep PS2 Mini-Redundant power supply installation
* Support 600W~800W SureStar R4B series 199mm deep PS2 Mini-Redundant power supply installation
* Support 500W~800W Zippy MRG series 200mm deep PS2 Mini-Redundant power supply installation

* Support 7 slot full high expansion cards (max. 175mm long)
* Standard paint: scratch-resistant Black textured at front
* IPC China branded server chassis model (with build-in fans and all electronic parts) global 3 years warranty
* Chassis dimension: 19" x 4U x 380mm (14.96" deep)

* Accessory pack: #6 round head x44, M3 truess head x12, M3 countersunk x4, plastic MB stand-off x1, metal MB stand-off x2
* Package: NW 7.3 KGM, GW 9.3 KGM, 2.78 CUFT (carton size: 560x530x265mm)

* Green Energy saving server patent pending areas: China, Taiwan, Thailand, Korea, Japan, USA, UK, EU, Russia

* Patent and Law attorney agency: China GuanDong Kwo Hui Attorney at Law

* Drawing      English catalogue      Chassis Quick Manual

Ordering Information:
Chassis model # & description: G4380 4U EnergySaving server chassis

Option A-1: PS2 psu with 8cm or 12cm~14cm fan version (power supply depth at 140mm~200mm)

Option A-2: SureStar R4S series 400W/500W PS2 Mini Redundant power supply (depth at 174mm)

Option A-3: Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4: SureStar R4B series 600W/700W/800W PS2 Mini Redundant power supply (depth at 199mm)

Option A-5: Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1: NJ-600, 1234U 65kg durable 600mm 2-layer 3-travel universal slide rail (part# is 1 pair, cabinet internal depth 600~1200mm compliant)

Option B-2: 1234U-RMK, 1234U rear mounting kit (part# is 1 pair)

Option C: D80SM-12, YateLoon 80mmx25mm exhaust cooling fan (part# is 1pcs, can install 2pcs above I/O of rear panel)

Option D: 25-35-BK ,5.25" space to one 3.5" HDD or one 3.5" HDD space to two 2.5" HDD bracket

Option E-1: 2525TO3HDBK ,two 5.25" drive space converted into three 3.5" HDD bracket

Option E-2: 3525TO5HDBK, three 5.25" drive space converted into five 3.5" HDD bracket

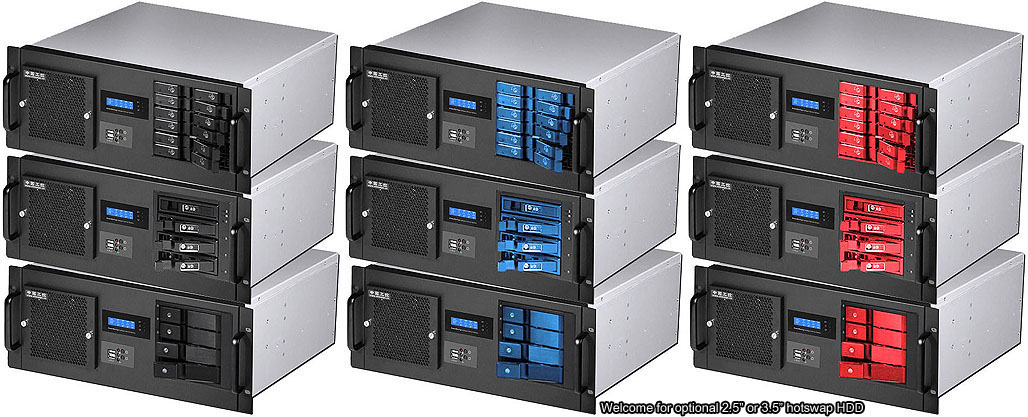

Option E-3: N-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-4: S-16TM, 1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option E-5: N-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-6: S-16TL, 1x5.25" ODD to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-7: N-29SS15, 1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-8: N-67SS, 1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-9: SS-88TM, 1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-10: N-49SS-MS, 1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-11: N-49SS, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-12: SS-46TM, 1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-13: SS-86TM, 2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-14: N-36TM, 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-15: S-36TM, 2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-16: N-36TL, 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-17: S-36TL, 2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-18: SS-126TM, 3x5.25" to 12x2.5" HotSwap Cage SATA/SAS 6G

Option E-19: N-46TM-MS, 3x5.25" to 4x3.5" HotSwap Cage SFF-8643 12G

Option E-20: N-46TM, 3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 12G

Option E-21: S-46TM, 3x5.25" to 4x3.5" HotSwap Cage SATA/SAS 6G

Option E-22: N-46TL-MS, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SFF-8643 12G

Option E-23: N-46TL, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-24: S-46TL, 3x5.25" to 4x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-25: N-56TM, 3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 12G

Option E-26: S-56TM, 3x5.25" to 5x3.5" HotSwap Cage SATA/SAS 6G

Option E-27: N-56TL, 3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-28: S-56TL, 3x5.25" to 5x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1: 1MSAS-4SATA-500MM, SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2: SFF-8643-500MM, SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3: 4SATA-SFF-8643-500MM, Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4: SFF-8643-4SATA-500MM SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1: 2U2011A-8080 ,2U Intel LGA2011 active CPU cooler Square

Option G-2: 2U2011A-5694 ,2U Intel LGA2011 active CPU cooler Narrow

Option G-3: 2U1150A, 2U Intel LGA115x active CPU cooler

Option G-4: 2U4094A, 2U AMD EPYC SP3 LGA4094 active CPU cooler
Option G-5: 2U3647A-S82, 2U Intel LGA3647 active CPU cooler Square

Option G-6: 2U3647A-R82-1, 2U Intel LGA3647 active CPU cooler Narrow
